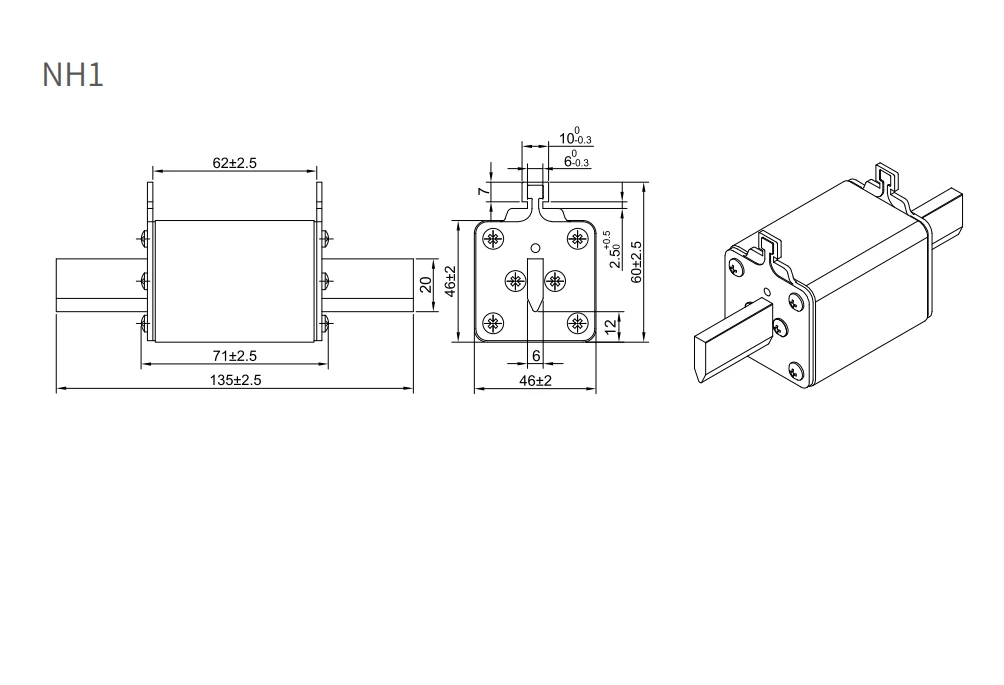

1000VDC NH1 size Solar PV fuse 63A,80A,100A,125A,160A ,200A,250A gPV
Yueqing Aidun Electrical produce “SOLARSON”brand NH1 size 1000VDC Solar PV Fuse and base are for protecting solar systerm, high cycling and low fault current conditions (reverse current, multi-array fault) string arrays. Four styles available for application flexibility.
Product description
□ According to IEC/EN60269-6
□ Rated current：63A,80A,100A,125A,160A ,200A,250A
□ Rated voltage： 1000V DC
□Rated breaking capacity：DC 50kA
□ Operating class gPV and UL PV fuse link for Solar protection
