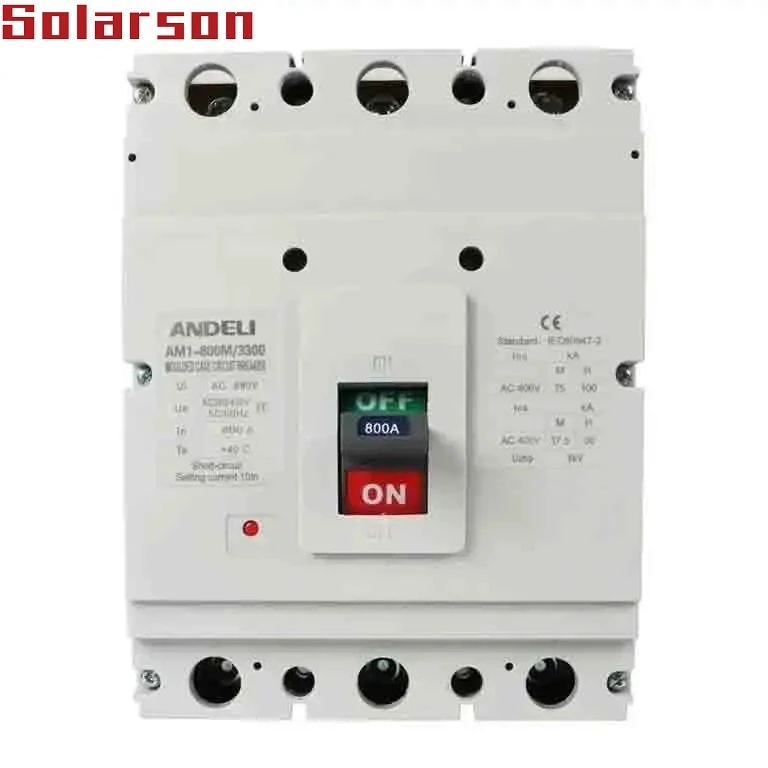

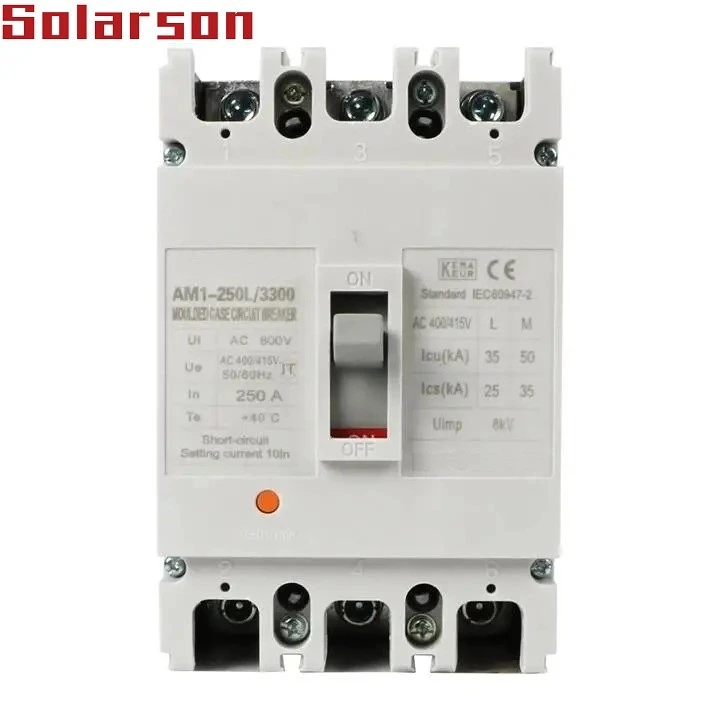

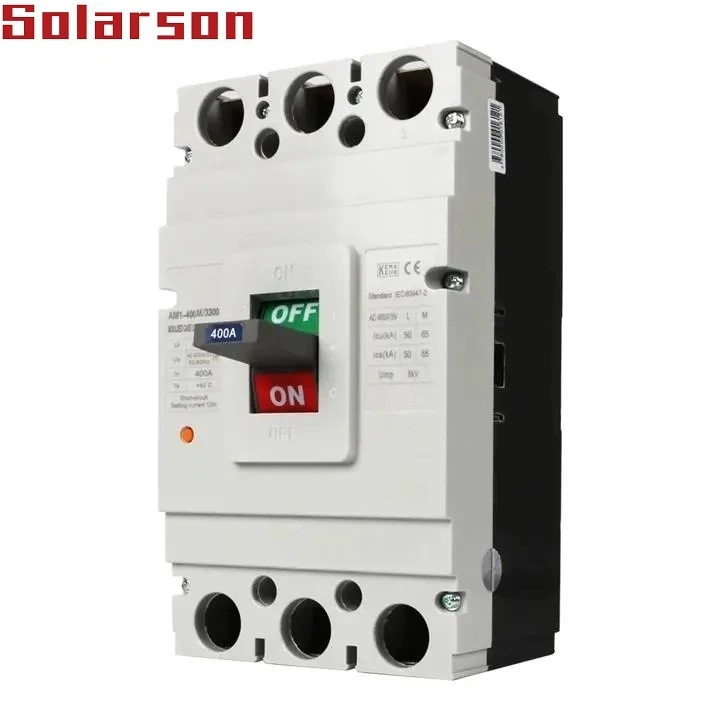

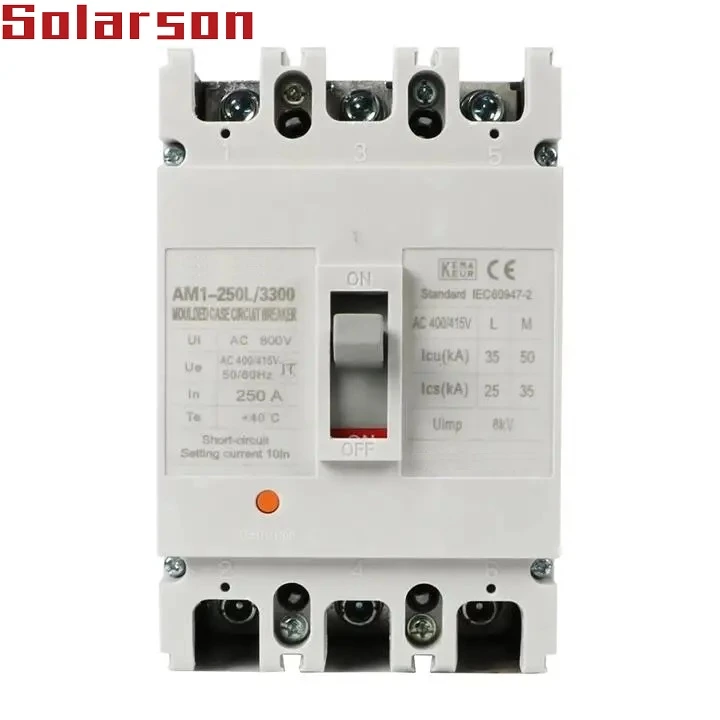

AM1 Series Moulded Case Circuit Breaker 400VAC 500VAC AM1-63 AM1-125 AM1-250 AM1-400 AM1-630 AM1-800 AM1-1000,AM1-1250

Inquiry
AM1 Series Moulded Case Circuit Breaker 400VAC 500VAC AM1-63 AM1-125 AM1-250 AM1-400 AM1-630 AM1-800 AM1-1000,AM1-1250
AM1 Series Moulded Case Circuit Breaker 400VAC 500VAC AM1-63 AM1-125 AM1-250 AM1-400 AM1-630 AM1-800 AM1-1000,AM1-1250 AM1 Series Moulded Case Circuit Breaker 400VAC 500VAC AM1-63 AM1-125 AM1-250 AM1-400 AM1-630 AM1-800 AM1-1000,AM1-1250 AM1 Series Moulded Case Circuit Breaker 400VAC 500VAC AM1-63 AM1-125 AM1-250 AM1-400 AM1-630 AM1-800 AM1-1000,AM1-1250 AM1 Series Moulded Case Circuit Breaker 400VAC 500VAC AM1-63 AM1-125 AM1-250 AM1-400 AM1-630 AM1-800 AM1-1000,AM1-1250 AM1 Series Moulded Case Circuit Breaker 400VAC 500VAC AM1-63 AM1-125 AM1-250 AM1-400 AM1-630 AM1-800 AM1-1000,AM1-1250

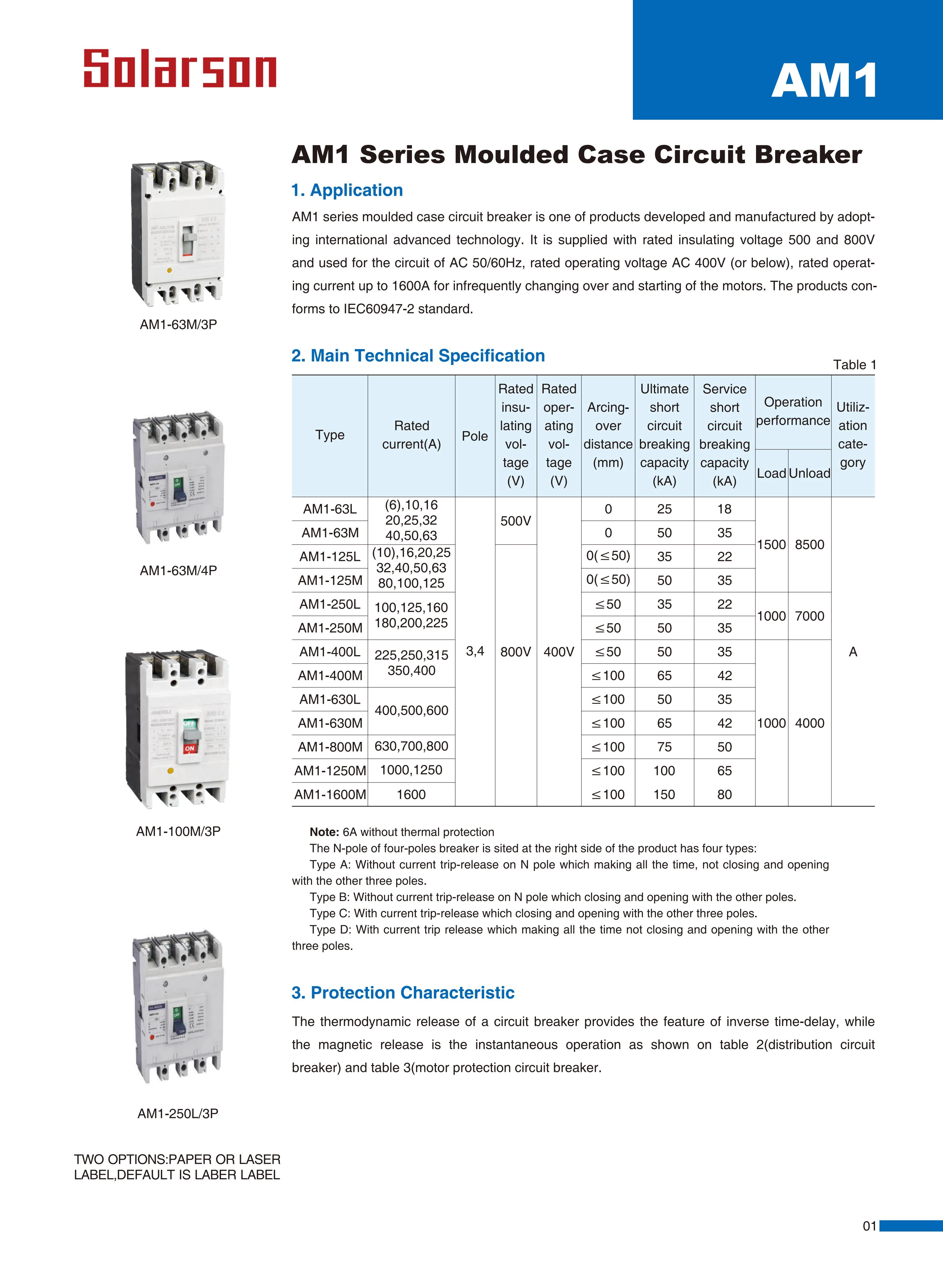

AM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 500 and 800V and used for the circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1 600A for infrequently changing over and starting of the motors. The products conforms to IEC60947-2 standard.

Type: AM1-63M AM1-125M  AM1-250M AM1-400M AM1-630M AM1-800M AM1-1000M,AM1-1250M

       AM1-63L AM1-125L  AM1-250L AM1-400L AM1-630L AM1-800L AM1-1000L ,AM1-1250L

Voltage:400VAC ,500VAC

Poles:3P.4P
