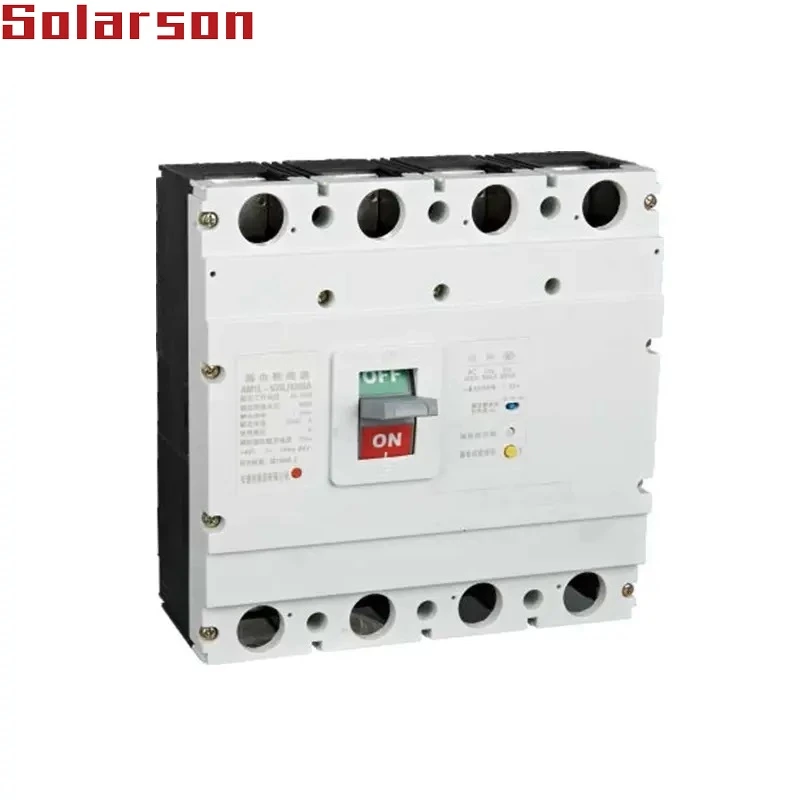

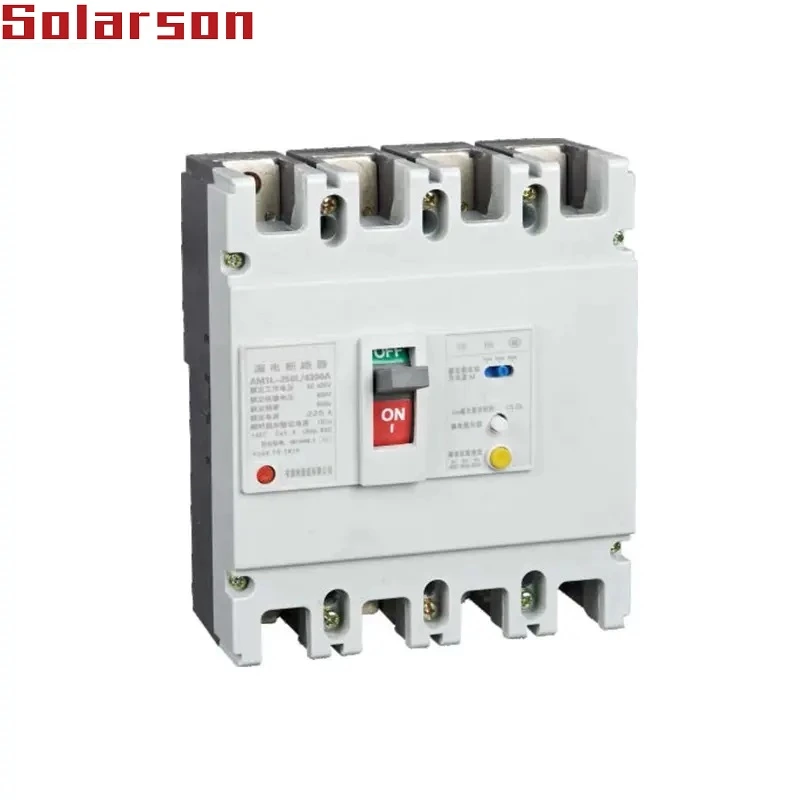

AM1L Series Earth Leakage Circuit Breaker 400VAC 500VAC 3P 4P AM1L-100 AM1L-225 AM1L-400 AM1L-630

Inquiry
AM1L Series Earth Leakage Circuit Breaker 400VAC 500VAC 3P 4P AM1L-100 AM1L-225 AM1L-400 AM1L-630
AM1L Series Earth Leakage Circuit Breaker 400VAC 500VAC 3P 4P AM1L-100 AM1L-225 AM1L-400 AM1L-630 AM1L Series Earth Leakage Circuit Breaker 400VAC 500VAC 3P 4P AM1L-100 AM1L-225 AM1L-400 AM1L-630 AM1L Series Earth Leakage Circuit Breaker 400VAC 500VAC 3P 4P AM1L-100 AM1L-225 AM1L-400 AM1L-630

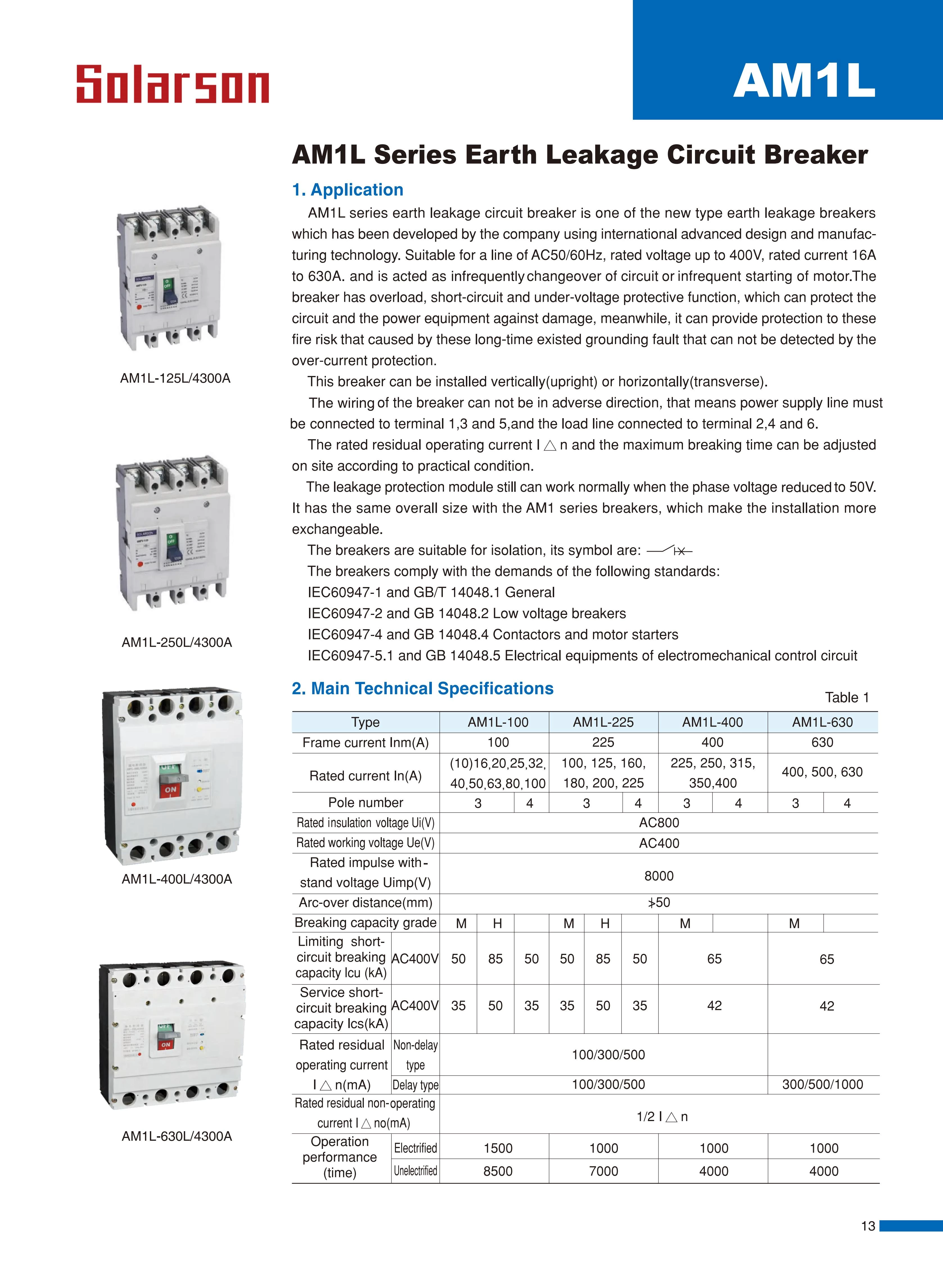

 Application

which has been developed by the company using international advanced design and manufacure to 630A. and is acted as infrequently changeover of circuit or infrequent starting of motor.The circuit and the power equipment against damage, meanwhile, it can provide protection to these over-current protection.The wiring of the breaker can not be in adverse direction, that means power supply line must The rated residual operating current |△n and the maximum breaking time can be adjusted,The leakage protection module still can work normally when the phase voltage reduced to 50V.

exchangeable.

The breakers comply with the demands of the following standards:

IEC60947-2 and GB 14048.2 Low voltage breakers

IEC60947-5.1 and GB 14048.5 Electrical equipments of electromechanical control circuit

Type: AM1L-100 AM1L-225 AM1L-400 AM1L-630

Voltage:400VAC ,500VAC

Poles:3P.4P
