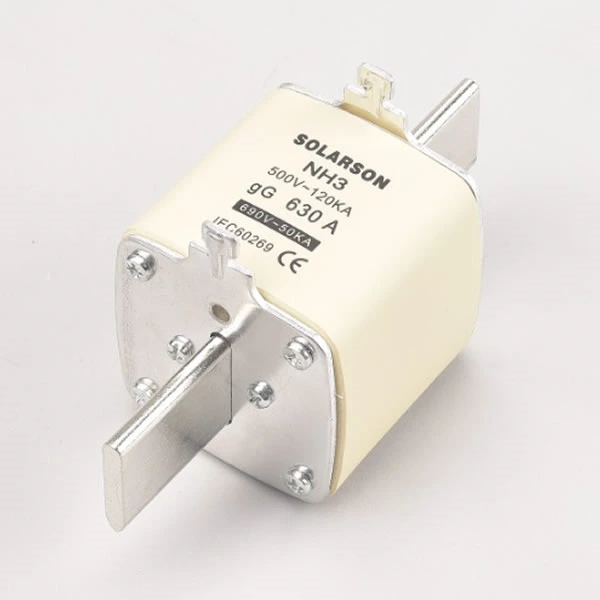

HRC NT3 Fuse Link 500V 690V Up To 630A
Technical Data:
Rated Voltage:500/690V
Rated Currents:315A,355A,400A,500A,630A
Breaking Capacity:500V-80kA，690V-80kA
Function Level:gG/gL\gtr\aM\gM\aR
Standard:IEC50269,DIN43620,VDE 0636
|
No. |
Product type |
Competitor Part Number |
Rated Voltage (V) |
Rated current (A) |
Overall dimension (mm) |
|||||
|
gG |
aR |
A |
C |
D |
E |
H |
||||
|
18020 |
NT1 |
NH1 RT16-1 |
RS32 |
500/690 |
32-250 |
135 |
68 |
48 |
20 |
60 |
|
18021 |
NT2 |
NH2 RT16-2 |
RS33 |
500/690 |
80-400 |
150 |
68 |
58 |
25 |
72 |
|
18022 |
NT3 |
NH3 RT16-3 |
RS34 |
500/690 |
160-630 |
150 |
68 |
68 |
32 |
84
|

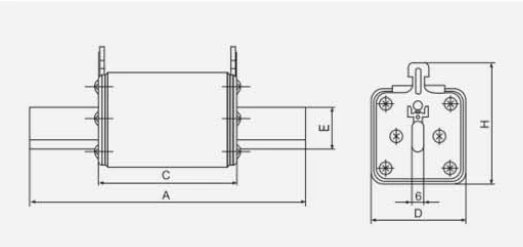

Dimension
