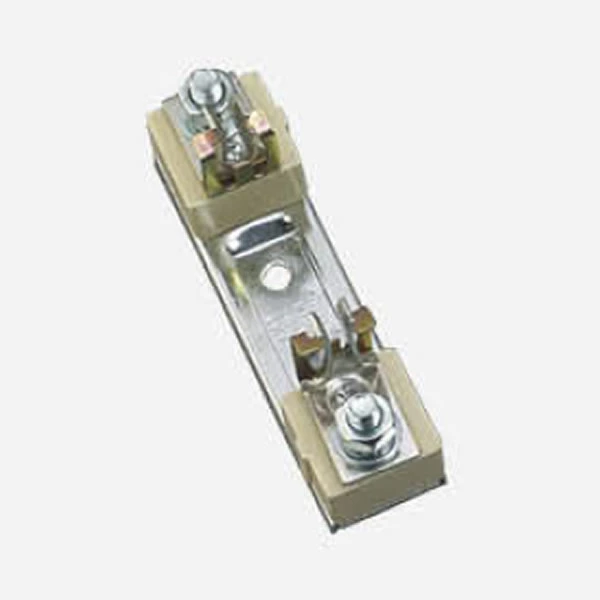

HRC NH2 Steel Fuse Base 500V 690V 400A
China Aidun Electric "Solarson" brand HRC NH00 Steel Fuse Base 500V 690V 400A used for NH2,NT2 fuse link
Technical Data:
Rated Voltage:500/690V
Rated Amps :400A
Breaking Capacity:500V-120kA，690V-80kA
Function Level:gG/gL\gtr\aM\gM\aR
Standard:IEC50269,DIN43620,VDE 0636
|
No. |
Product type |
Compatible Fuse Link Size |
Rated Voltage (V) |
Rated current (A) |
Overall dimension (mm) |
||||
|
A |
B |
D |
E |
H |
|||||
|
18039 |
NT1 |
RT16-1 NT1 NH1 |
500/690 |
250 |
175 |
200 |
50 |
30 |
82 |
|
18040 |
NT2 |
RT16-2 NT2 NH2 |
500/690 |
400 |
200 |
230 |
64 |
30 |
104 |
|
18041 |
NT3 |
RT16-3 NT3 NH3 |
500/690 |
630 |
210 |
250 |
64 |
30 |
120 |

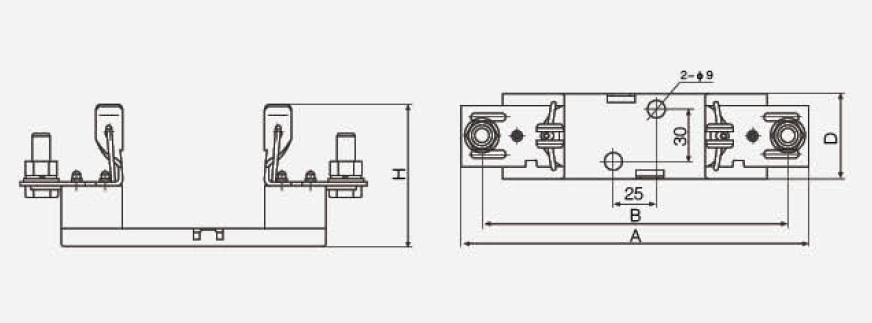

Dimension
