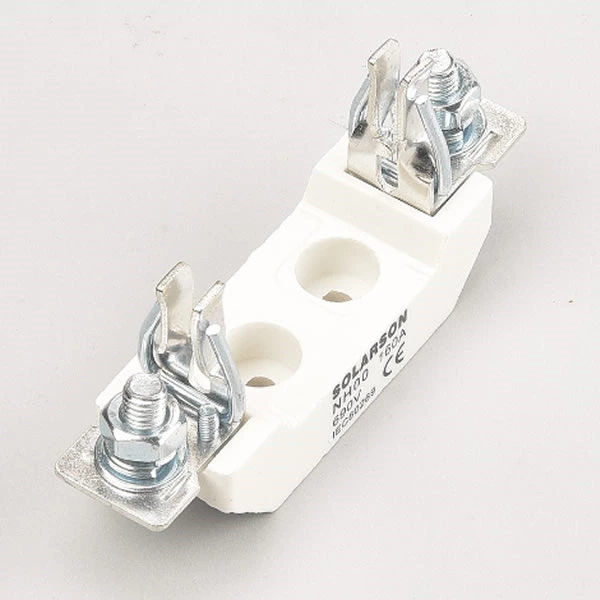

HRC NH00 Ceramic Fuse Base 500V 690V 160A
Technical Data:
Rated Voltage:500/690V
Rated Amps of fuse:10A,12A,16A,20A,25A,35A,40A,50A,63A,80A,100A,125A,135A,150A,160A
Breaking Capacity:500V-120kA，690V-80kA
Function Level:gG/gL\gtr\aM\gM\aR
Standard:IEC50269,DIN43620,VDE 0636
|
No. |
Product type |
Compatible Fuse Link Size |
Rated Voltage (V) |
Rated current (A) |
Overall dimension (mm) |
|||
|
A |
B |
C |
F |
|||||
|
18030 |
NH00 |
NH000 NT00 |
500/690 |
160 |
119 |
100 |
30 |
60 |

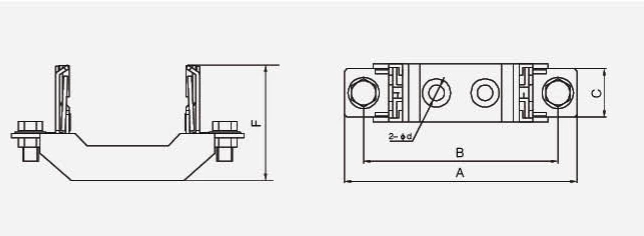

Dimension
