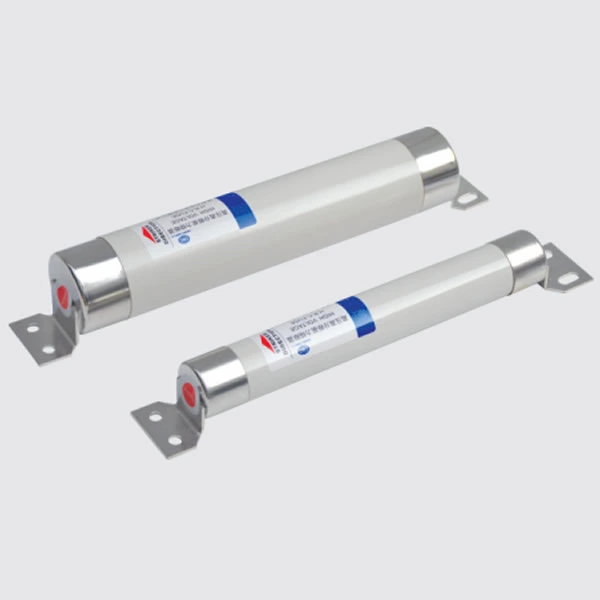

BS standard 10KV High Voltage Motor Fuse Link
China Aidun Electric “Solarson”brand BS standard 3.6KV High Voltage Motor Fuse Link are designed to meet the specific requirements necessary for motor protection.
During the starting cycle of direct on-line motors, the fuse elements will reach a considerably higher
temperature than during normal operation; (this is due to the the high amount of current the motor will draw as it starts,
typically, 6 times its normal load current value).
Available in DIN 43625 and BS2692 dimensions
Technical data
- Product type:XRNM1 or WDF
- Ampere Rating: 25A,32A,40A,50A,63A,80A,100A,125A,160A,200A,224A
- Voltage Rating: 10KV
- Breaking capacity: 40kA.
- Class:gL/gG
- Standard:IEC60282,EN60282,IEC 282-1,BS2692-1
| No. | Products model | Competitor part number | Rated Voltage (kV) | Rated current (A) | Breaking capacity (kA) | Overall dimension | Weight (g) | |
| ΦD | L | |||||||
| 18416 | XRNM1 | WDF.O | 3.6 | 50, 63, 80, 100, 125 | 50 | 51 | 254 | 1.4 |
| 18417 | XRNM1 | WDF.O | 3.6 | 125,160, 200 | 50 | 76 | 254 | 2.8 |
| 18418 | XRNM1 | WDF.O | 3.6 | 250, 315, 355, 400 | 50 | 76 | 254 | 2.8 |
| 18419 | XRNM1 | WDN.O | 7.2 | 25, 31.5, 40, 50, 63, 80,100, 125, 160 | 40 | 76 | 403 | 4.15 |
| 18420 | XRNM1 | WDN.O | 7.2 | 200,224 | 40 | 76 | 403 | 4.15 |
| 18421 | XRNM1 | 10 | 25, 31.5, 40, 50, 63, 80,100,125,160,200, 224 | 40 | 76 | 403 | 5.26 | |
Dimension(mm):
