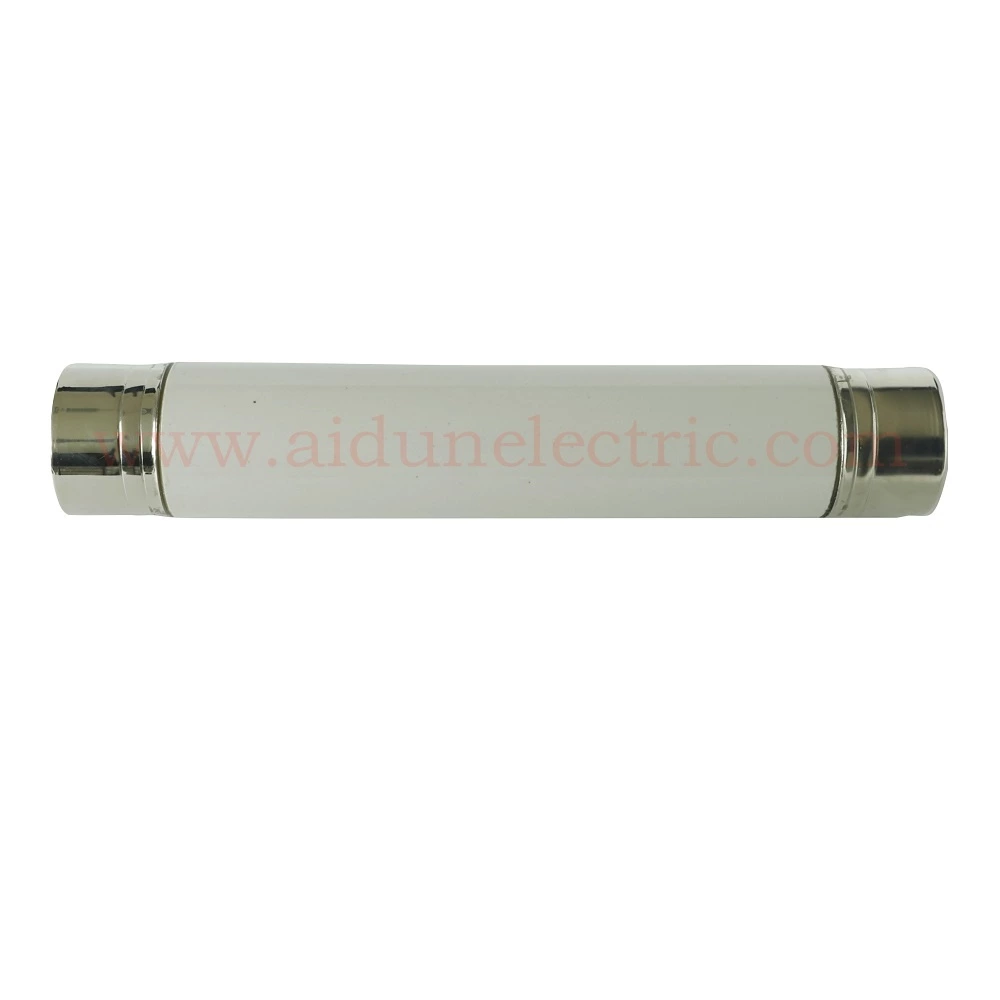

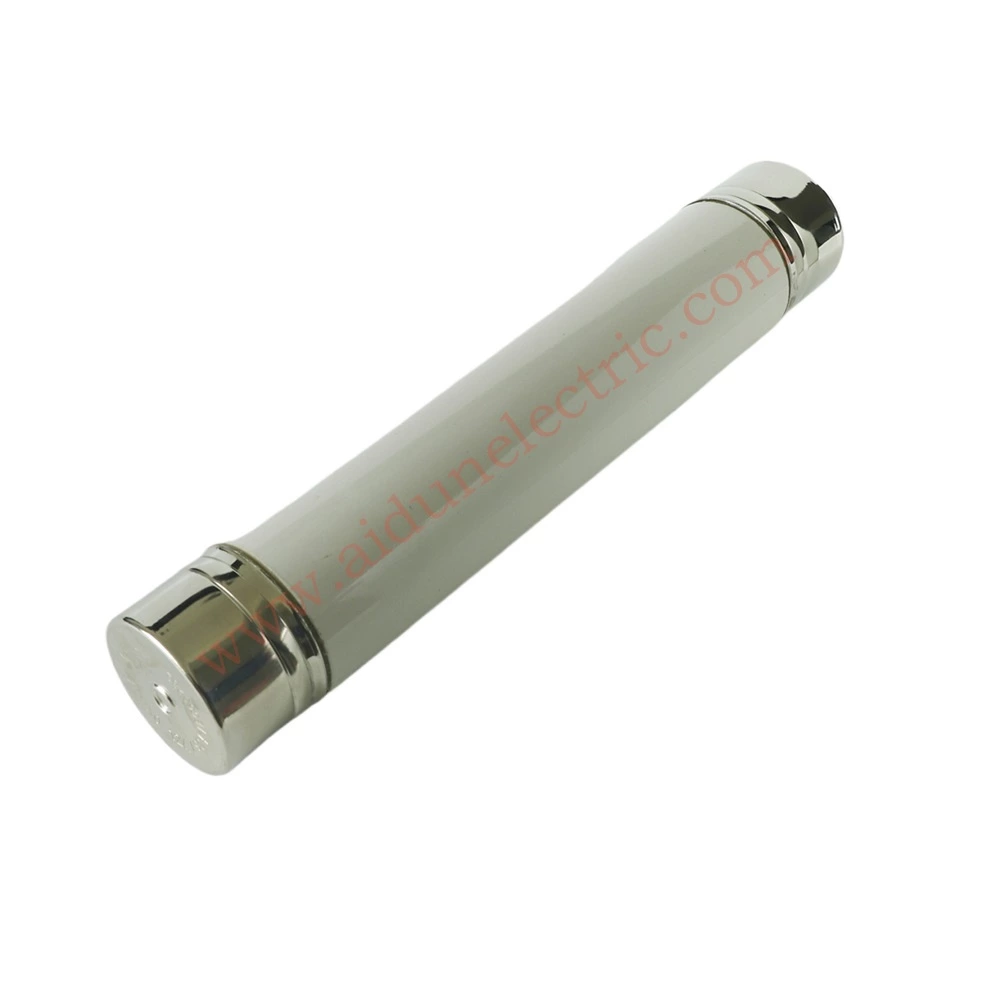

24KV High Voltage Fuse for use in Oil Switchgear
China Aidun Electric “Solarson” Brand 24KV High Voltage Fuse OEGMA for use in Oil Switchgearcomply with IEC 282-1, BS2692-1 and ESI Standard 12-8.
Voltage ranges 3.6 to 24kV.
Fitted with powerful pyrotechnic striker pin.
Technical data
- Type:OEGMA
- Ampere Rating: 6.3A,10A,16A,20A,32A,40A,50A,63A
- Voltage Rating: 24KV
- Breaking capacity:25kA.
- Class:gL/gG
- Standard:IEC60282,EN60282,IEC 282-1,BS2692-1
| No. | Products model | Rated Voltage (kV) | Rated current (A) | Breaking capacity (kA) | Length mm |
| 18428 | OEFMA | 3.6 | 6.3,10,16,20,25,31.5,40,50,63,80,100,125,160,200 | 50 | 254 |
| 18429 | OEFMA | 7.2 | 80,100,112 | 50 | 254 |
| 18430 | OHGMA | 7.2 | 100,125,140,160 | 50 | 359 |
| 18431 | OEFMA | 12 | 6.3,10,16,20,25,31.5,40,50,63 | 40 | 254 |
| 18432 | OHFMA | 12 | 71,80 | 40 | 254 |
| 18433 | OHGMA | 12 | 6.3,10,16,20,25,31.5,40,50,63,80,100,125 | 40 | 359 |
| 18434 | OFGMD | 17.5 | 63,80,100,125 | 40 | 359 |
| 18435 | OKGMD | 17.5 | 160,200 | 40 | 359 |
| 18436 | OEGMA | 24 | 6.3,10,16,20,25,31.5,40,50,63 | 25 | 359 |
Dimension(mm):
