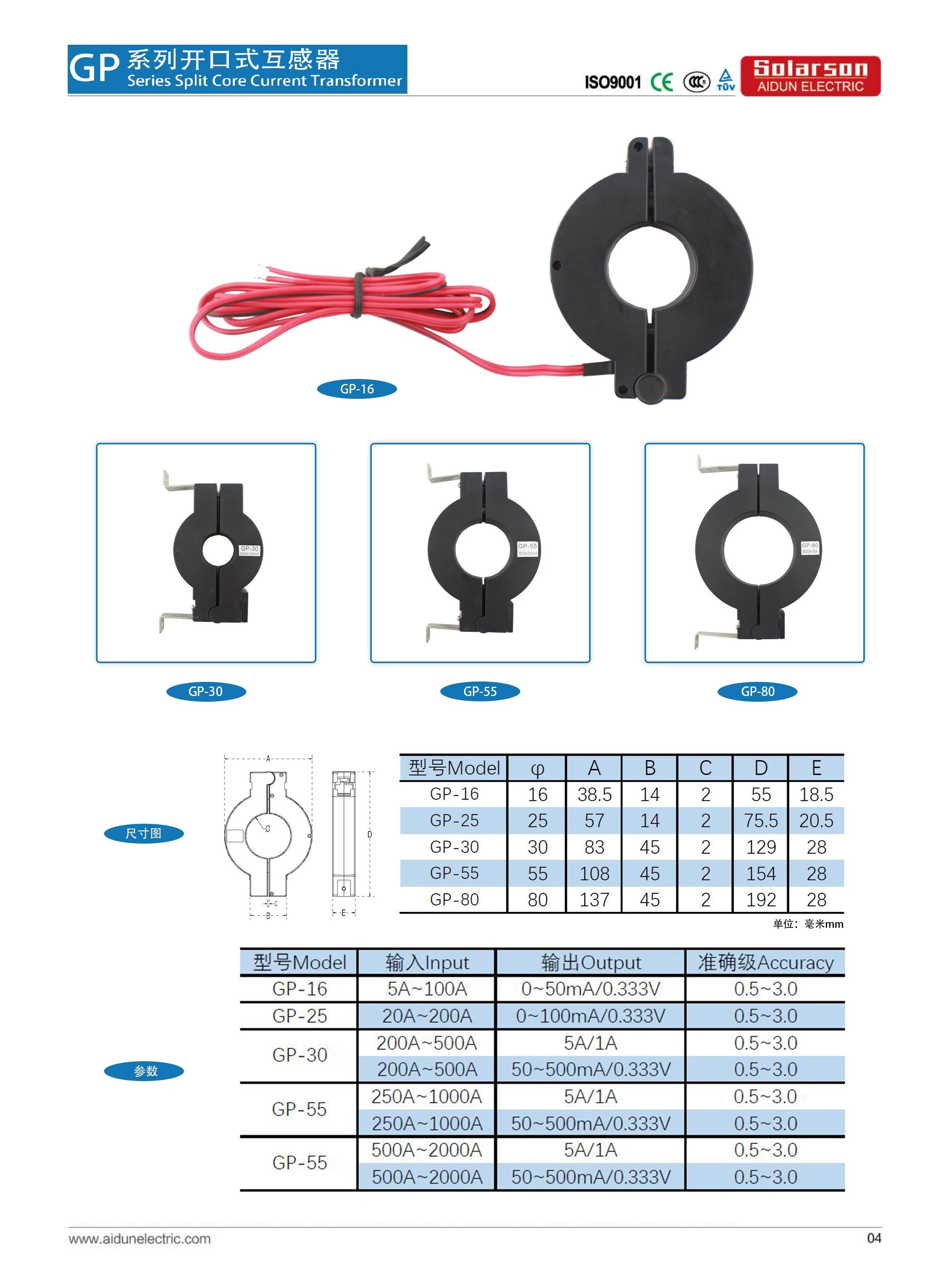

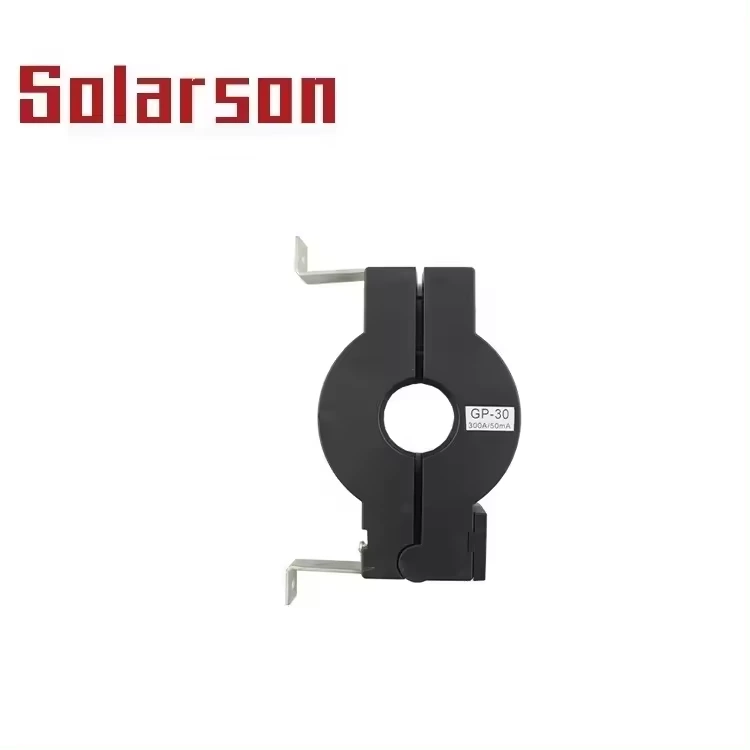

GP-30 Split Core Current Transformers CTS Input: 200A 250A 300A 400A 500A Output Signal:1A or 5A ,Accuracy Class 0.5 ,1.0 ,3.0

Inquiry
GP-30 Split Core Current Transformers CTS Input: 200A 250A 300A 400A 500A Output Signal:1A or 5A ,Accuracy Class 0.5 ,1.0 ,3.0
GP-30 Split Core Current Transformers CTS Input: 200A 250A 300A 400A 500A Output Signal:1A or 5A ,Accuracy Class 0.5 ,1.0 ,3.0 GP-30 Split Core Current Transformers CTS Input: 200A 250A 300A 400A 500A Output Signal:1A or 5A ,Accuracy Class 0.5 ,1.0 ,3.0 GP-30 Split Core Current Transformers CTS Input: 200A 250A 300A 400A 500A Output Signal:1A or 5A ,Accuracy Class 0.5 ,1.0 ,3.0

GP-30 Split Core Current Transformers  CTS Input:  200A 250A 300A 400A 500A Output Signal:1A or 5A or 333mV ,Accuracy Class 0.5 ,1.0 ,3.0

Description

The GP series split core current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or bus-bar through the transformer core to connect such cables to the primary terminals.

Features

Two built in fixing methods: panel/busbar

Very easy to install

Wide inner window,allowing clamping of big cables or bus-bars

Wide range of sizes to accommodate all the existing installation

 Input:  200A 250A 300A 400A 500A

Output Signal:1A or 5A

Accuracy Class 0.5 ,1.0 ,3.0

Standard

IEC60044-1, IEC61869-1, IEC61869-2
