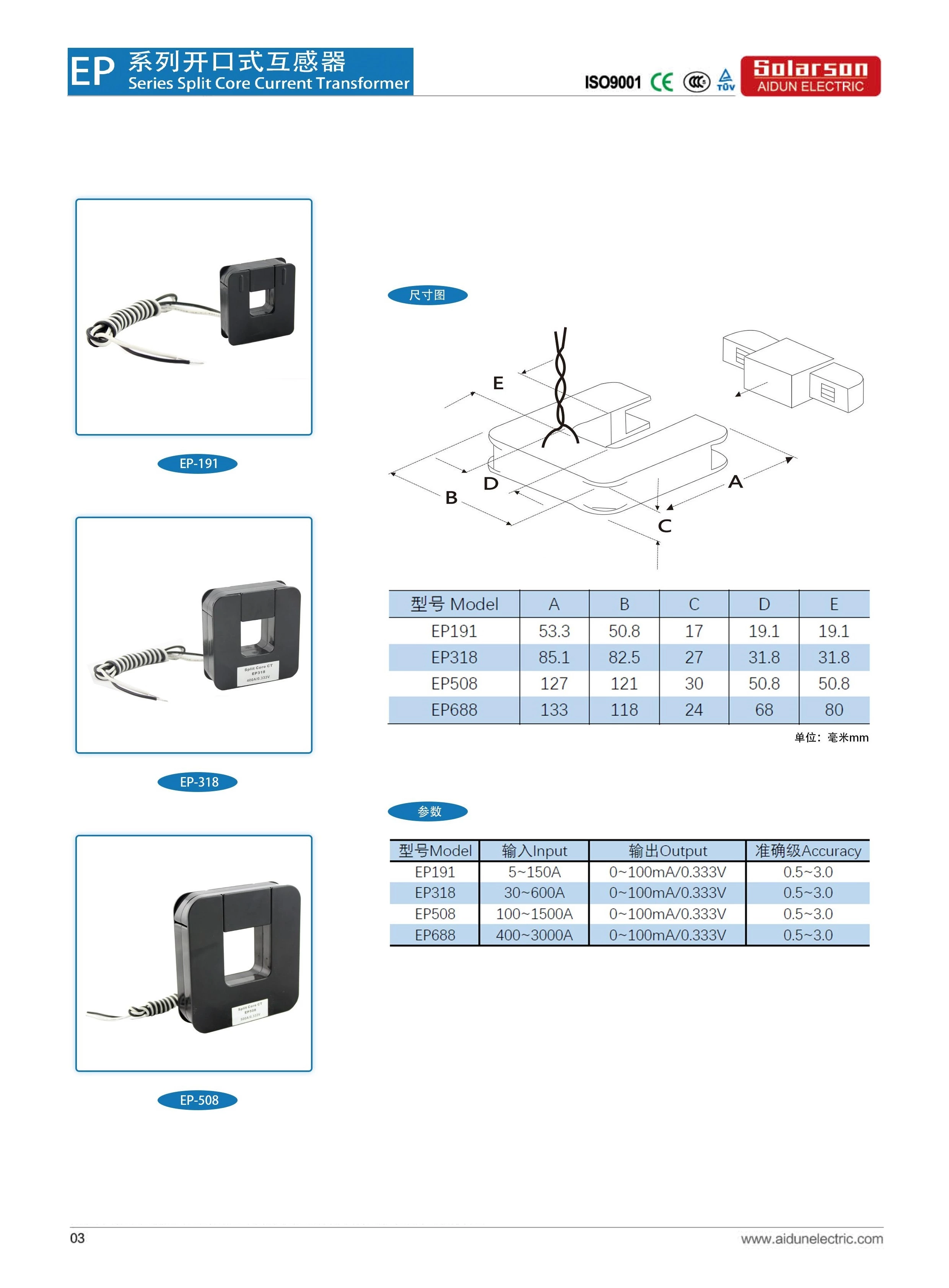

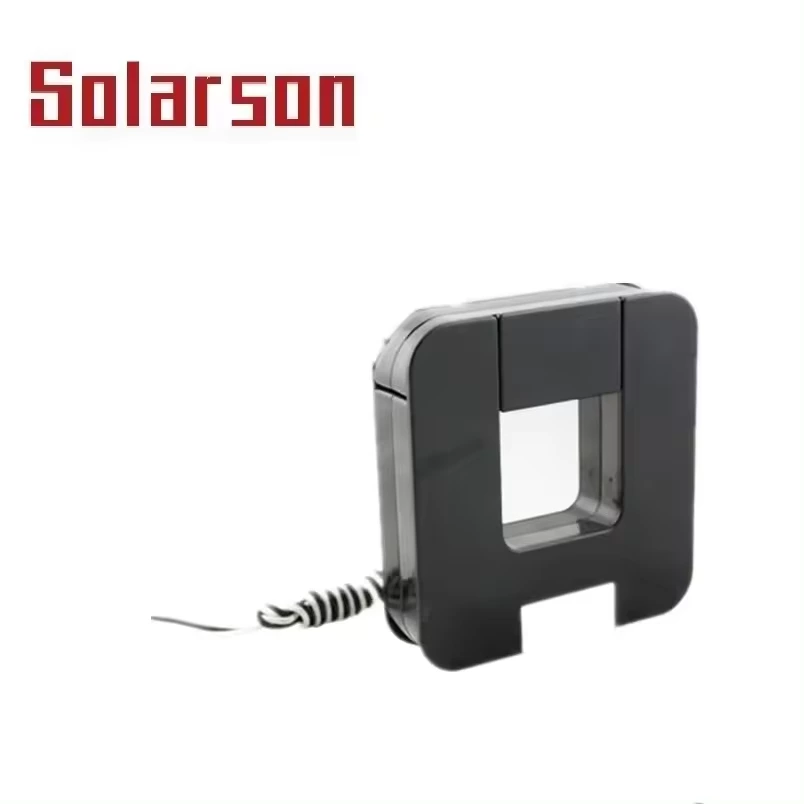

EP-688 Split Core Current Transformers CTS Input:400A 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A 2000A 2500A 3000A Output Signal:0-100mA or 333 mV ,Accuracy Class 0.5 ,1.0 ,3.0

Inquiry
EP-688 Split Core Current Transformers CTS Input:400A 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A 2000A 2500A 3000A Output Signal:0-100mA or 333 mV ,Accuracy Class 0.5 ,1.0 ,3.0
EP-688 Split Core Current Transformers CTS Input:400A 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A 2000A 2500A 3000A Output Signal:0-100mA or 333 mV ,Accuracy Class 0.5 ,1.0 ,3.0 EP-688 Split Core Current Transformers CTS Input:400A 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A 2000A 2500A 3000A Output Signal:0-100mA or 333 mV ,Accuracy Class 0.5 ,1.0 ,3.0

EP-688 Split Core Current Transformers  CT Input:400A 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A 2000A 2500A 3000A Output Signal:0-100mA or 333 mV ,Accuracy Class 0.5 ,1.0 ,3.0

Description

The EP series split core current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or bus-bar through the transformer core to connect such cables to the primary terminals.

Features

Two built in fixing methods: panel/busbar

Very easy to install

Wide inner window,allowing clamping of big cables or bus-bars

Wide range of sizes to accommodate all the existing installation

 Input: 400A 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A 2000A 2500A 3000A

Output Signal:0-100mA or 333 mV

Accuracy Class 0.5 ,1.0 ,3.0

Standard

IEC60044-1, IEC61869-1, IEC61869-2
