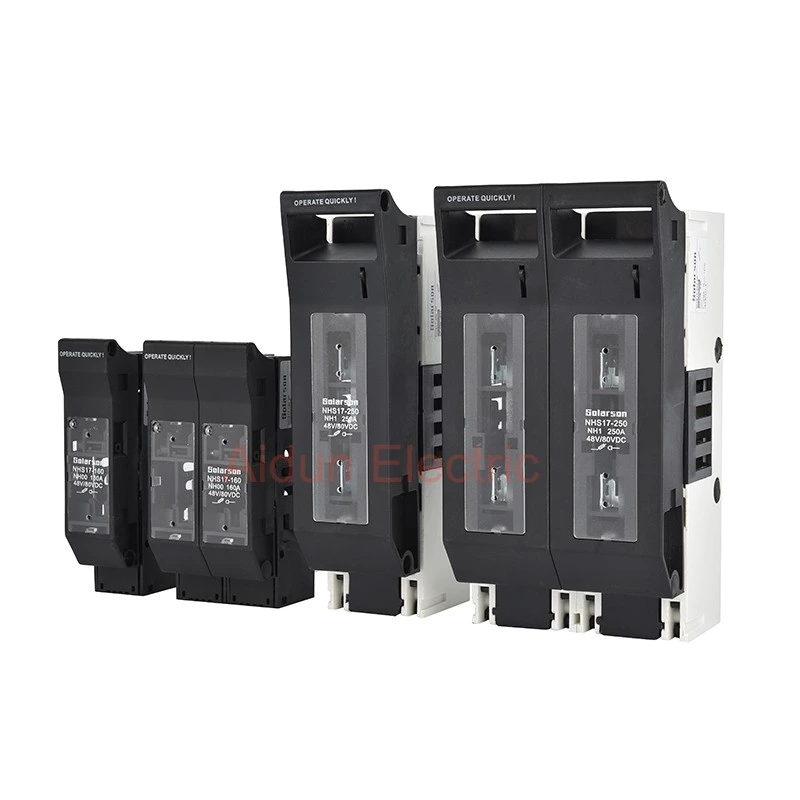

NHS17-400 48VDC 500VDC Battery protection fuse Disconnector switch 1P 2P 3P 400A for NH00 fuse
Product description
China Aidun Electrical produce “SOLARSON”brand NHS17-400 series NH2 Fuse Switch Disconnector 48VDC 400A are specifically designed to be used with NH2 battery protection fuse links. All energised metal parts are fully protected against accidental contact. These are manually operated switches and the making and breaking is dependent on the speed of the operation
Technical data
- Rated current of fuses :63A,80A,100A,125A,160A，200A，250A,,300A,315A,355A,400A
- Rated voltage:48VDC/500VDC
- Interupting capacity:DC 50kA
- Operating class: gG/gL,gS
- According to IEC/EN60269 and IEC/EN60947
